F 27

TYRE CHANGER TRUCK/BUS

F27_SMONTAGOMME

Tire changer vans and bus, equipped with command unit,

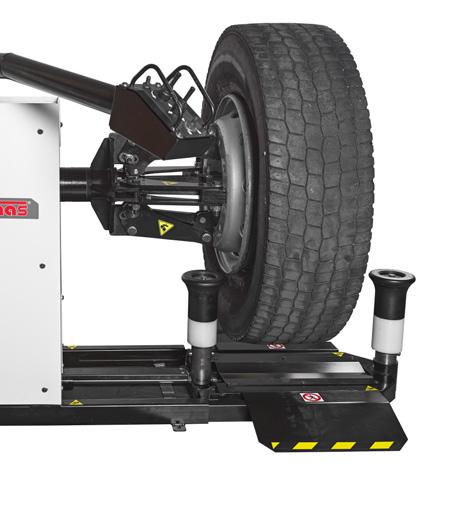

automatic roller,double tubeless rollers, platform traslation.

DATI TECNICI	F27

Rim locking capacity	14”- 27”

Locking from the central hole	diametro minimo 80mm

Max. wheel diameter	1200 mm

Max wheel width	500 mm

Max Wheel weight	300 Kg.

Bead breaking power	22.000 N

Rotation speed	3,5 - 7 rpm 400V/3Ph/50Hz // 7 rpm 220V/1Ph/50-60Hz

Min. Size	L 1600 - W 600 - H 1000 mm

Max.Size	L 2350 - W 600 - H 1000 mm

Noise level	<70±3 dB(A)

Net weight	375 kg.
