S 31

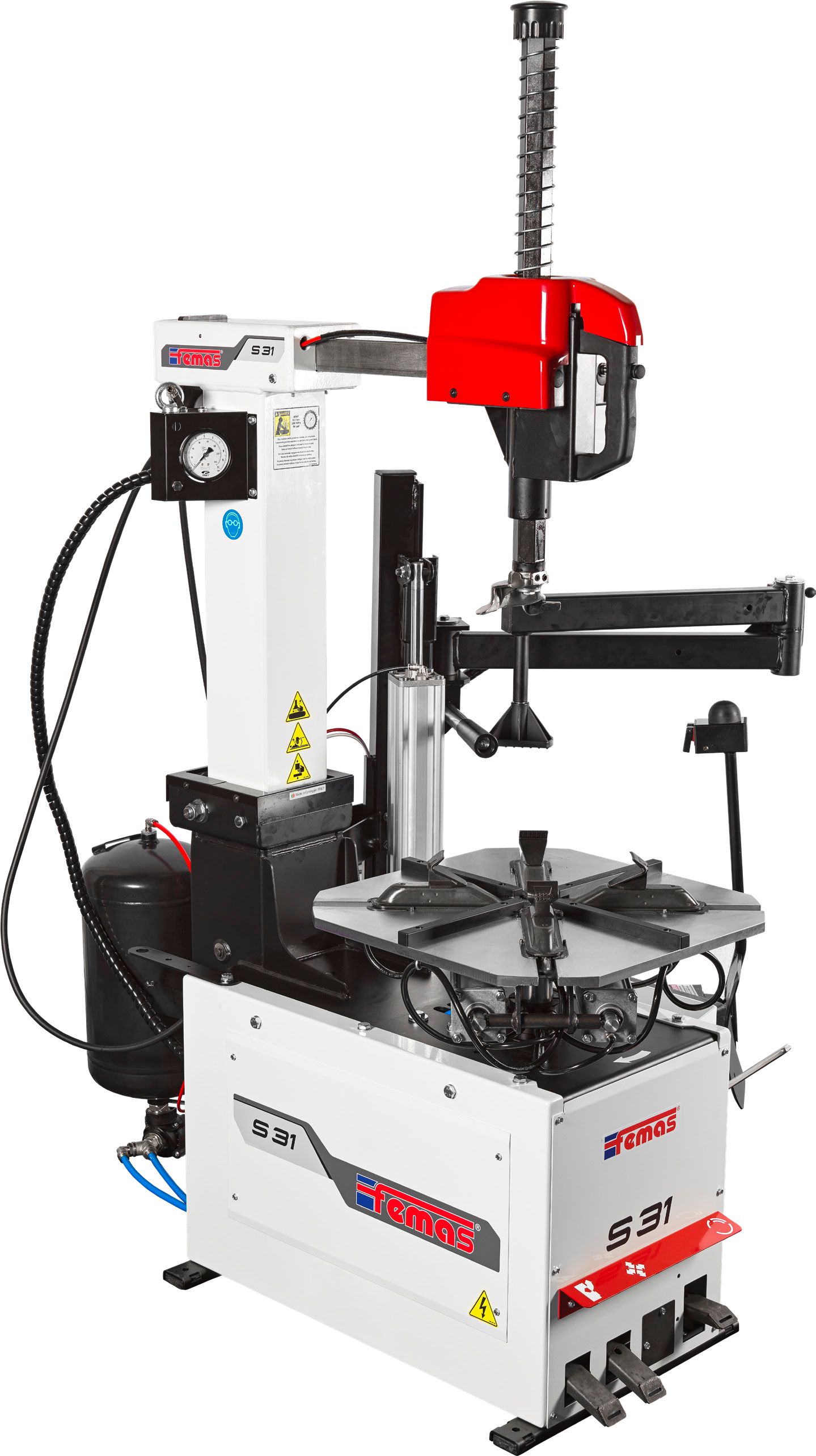

TYRE CHANGER TILT BACK
Automatic tyre changer for cars, equipped with a double-acting pneumatic bead breaker cylinder.
Available with two different motor configurations.
Automatic tilting column.
Self-centering turntable with clamping capacity from 11" to 27".
| TECHNICAL DATA | S 31 |
| External capacity | 11" - 24" |
| Internal capacity | 13" - 27" |
| Max. wheel diameter | 1020 mm (40") |
| Max. wheel width | 330 mm (13,5") |
| Turntable speed | 7 / 14 rpm Motoinv./8/16rmp 3Ph |
| Noise level | <70±3 dB(A) |
| Working pressure | 8-10 Bar (116 - 145 psi) |
| Electric power supply | 220-230V/1Ph / 50-60Hz - Motoinverter - 2 speed // 400V/3Ph/50Hz - 2 Speeed |
| Weight | Kg 235 |
STANDARD OPTIONS
Tape-a-weight removal
Gripper set protections
3+3 Protezioni Protrction for std tool
bead level
Set of plastic protectors for self-centering turntable.
UPON REQUEST
Floor roller table
Kit of tilting and floor roller tables
Standard tool head
.png)
Plastic tool head
Wheel lifter
Pneumatic descent device
GP Footing controlled inflating unit
